527Corrugated Pattern Sandwich Panel - widely used for temporary buildings, make our house finish in Short time Structure · 3 layers: · Surface: 0.3 mm Al-zn alloy coated steel sheet (Al 55%, Zn 43%) · Middle: 16mm PU foam · Back : Aluminium foil paper · Size: Length (3000mm
Corrugated Pattern Sandwich Panel - widely used for temporary buildings, make our house finish in Short time
· 3 layers:
· Surface: 0.3 mm Al-zn alloy coated steel sheet (Al 55%, Zn 43%)
· Middle: 16mm PU foam
· Back : Aluminium foil paper
· Size: Length (3000mm-6000mm) * Width:380mm * Thickness: 16mm
· Weight: 3.7kgs/sqm

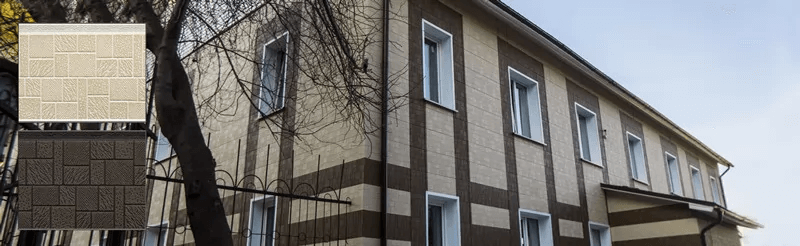

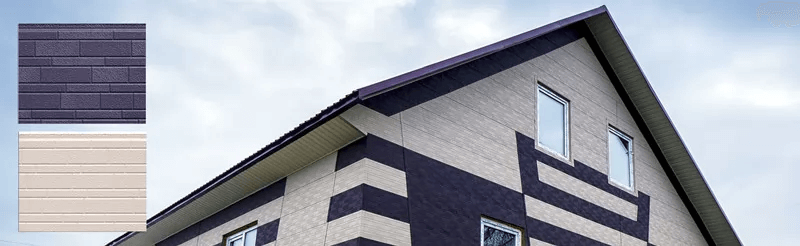

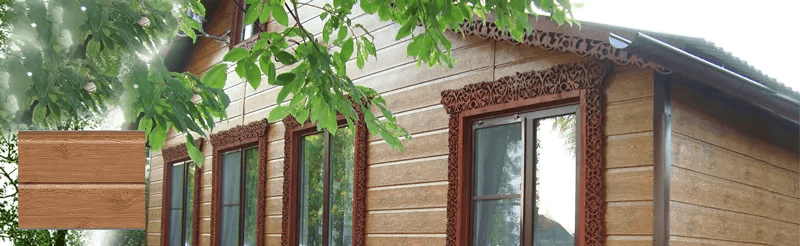

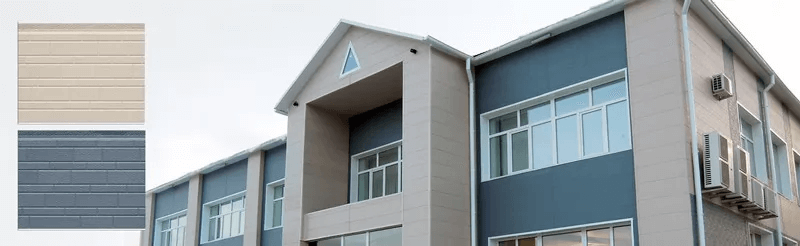

Sandwich panel is widely used for Exterior wall cladding and Interior wall Insulation and Decoration in the filed of PEB house, Villa, Steel Structure buildings, Hospital, Old Building renovation, School, Library, Supermarket, Plant, Train Station, Residence and so on!
Free combination of different color with different pattern can produce hundreds of styles, make your building much more attractive to your customers.
Thermal Conductivity: 0.021 W/(m·K)
Thermal resistance: 0.648 (m2·K)/W
3°~5° difference inside & outside after using Baikal sandwich panels.
It is the basic Characteristic for exterior wall panel, for the surface is Galvanized steel sheet, inner side is Aluminium foil paper, good water resistance & fire resistance.
Energy saving: air condition usage=1/3--1/5 energy before install panel
16mm Baikal sandwich panel =500mm common brick=1200mm mortar
Al 55% + 43% Zn Alloy steel sheet on the panel surface! This good chemical performance identified by World & Steel Institute make the sandwich panel lifetime more than 40 years.
Weight 3.7kgs/sqm, lighten building self-weight, so very hot selling for steel structure building, PEB house.
Just insert one by one and fix by screw, very easy!
About 30 sqm per person per day average, so widely used for speed house.
Dry construction, no need water, no need concrete, no dust, no, Pollution, no noise.
Self-cleaning by rain or water
